^FO Advanced — Multi-Field Layouts

Goal

Lay out multi-field labels with ^FO.

Description

^FO coordinates are absolute from the label home — there is no relative mode. “Relative” layouts are just computed origins, as this staircase shows.

Example

^XA
^FO20,20^A0N,28,28^FDTop^FS
^FO120,90^A0N,28,28^FDMiddle^FS
^FO220,160^A0N,28,28^FDBottom^FS
^XZ

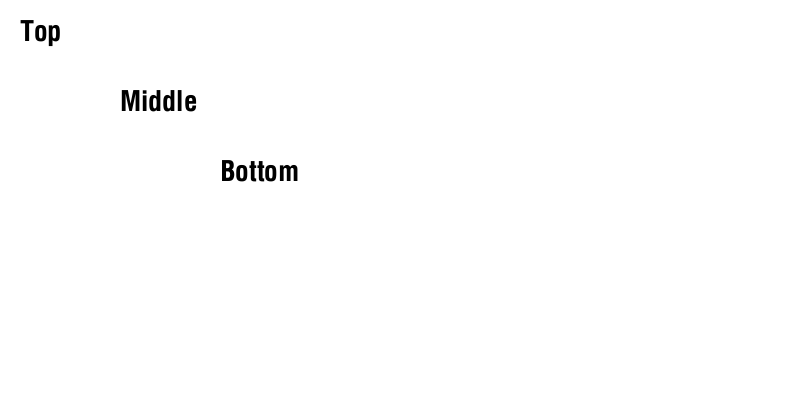

Result

Absolute origins stepping down and right: computed, not relative.
