^B1 — Code 11 Barcode

Goal

Print a Code 11 barcode with ^B1.

Description

^B1 prints Code 11 (USD-8): digits and hyphens only. It is a low-density numeric symbology — not Code 128, which is ^BC (lesson 10).

Example

^XA
^BY3
^FO20,20^B1N,N,70,Y,N^FD123-45^FS
^XZ

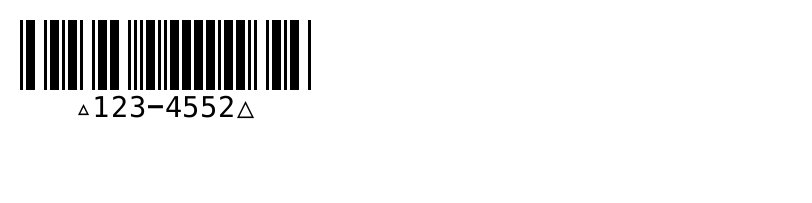

Rendered ^B1 label

Result

A Code 11 symbol. Compare with lesson 10: Code 128 needs ^BC, not ^B1.
