^B2 — Interleaved 2 of 5 Barcode

Goal

Print an Interleaved 2 of 5 barcode with ^B2.

Description

^B2 prints Interleaved 2 of 5: a numeric-only symbology encoding an even number of digits pairwise. Parameters are orientation, height, interpretation line and digit handling.

Example

^XA
^BY3
^FO20,20^B2N,70,Y,N,N^FD12345678^FS
^XZ

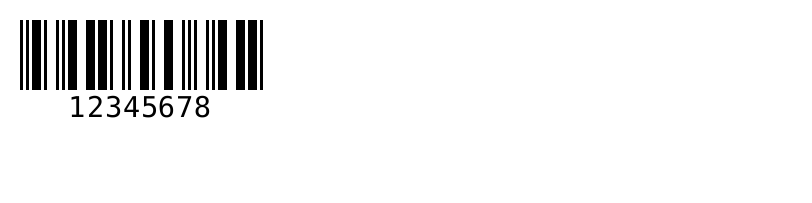

Rendered ^B2 label

Result

Eight digits interleaved into four bar pairs.
