^RS — RFID Setup

Goal

Configure the RFID subsystem with ^RS.

Description

^RS sets up RFID encoding: tag type, programming position, void-printout length, retry count and error handling.

Example

^XA
^RS8,,,3,E
^FX Gen 2 tag, default position, 3 retries, error mode.
^FO20,20^A0N,28,28^FDRFID label^FS
^XZ

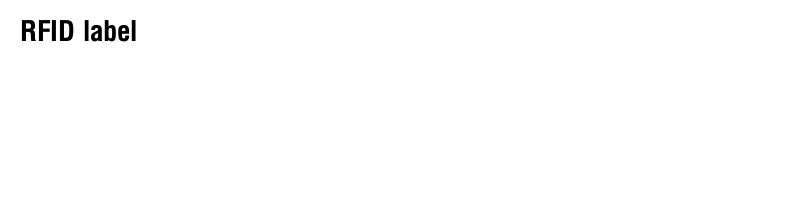

Rendered ^RS label

Result

Setup is accepted silently; the printed line is ordinary text proving the label still prints.
